Accessories
Lightspeed Design is a licensed distributor for many excellent product accessories well-matched to the DepthQ® HDs3D-1 Projector. Additionally, a large variety of accessories are available online directly from the InFocus Store.
For your convenience, here is a list of some of the most popular items. Click on any of the categories below to jump to the relevant accessories.
For your convenience, here is a list of some of the most popular items. Click on any of the categories below to jump to the relevant accessories.
         |  |

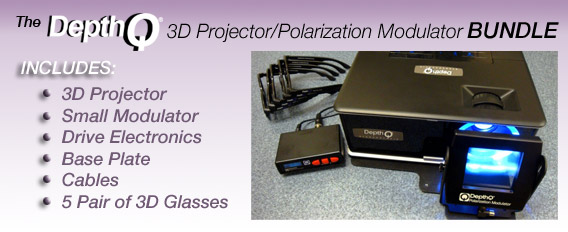

Please follow this link for information on DepthQ® Polarization Modulators.
EYEWEAR
The DepthQ® HDs3D-1 projector displays a progressive time-interleaved stream of left and right images at 120 frames per second. Liquid crystal (LC) shutter glasses are worn to alternately block images over time, so the right eye sees only the right image and the left eye sees only the left. This is accomplished by wirelessly synchronizing these 'active' glasses with the image stream, typically via an infra-red (IR) signal.Active Stereoscopic 3D (s3D) eyewear is manufactured by a variety of companies in two different categories: Professional and Consumer. The following are among the most highly recommended models:
Professional s3D Eyewear
RealD/Stereographics CrystalEyes 3 (CE3) View Product PDF |
NuVision 60GX View Product PDF |
NuVision APG-6100 |
XpanD X101 |
Consumer s3D Eyewear
nVidia 3DVision More Info |
eDimensional eDTM |
|

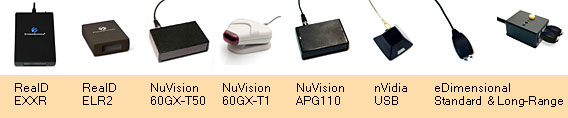

Infra-Red Emitters
As with active s3D eyewear, there are multiple manufacturers and models of the IR emitters necessary to drive them:
| Manufacturer | Model | Glasses Compatibility |
| CE3 | 60GX | APG-6100 | X101 | nVidia | eDTM | ||
| RealD | EXXR |  |
|
||||
| RealD | ELR2 | |
|
||||
| NuVision | 60GX-T50 | |
|||||
| NuVision | 60GX-T1 | |
|||||
| NuVision | APG110 | |
|
|
|||
| nVidia | USB Emitter | |
|||||
| eDimensional | Standard | |
|||||
| eDimensional | Long Range | |
In the end, choosing which eyewear and IR emitter is right for your setup will depend on a number of factors, including room size, operation time, form factor, computer hardware, number of viewers, etc. Please contact us for consultation and pricing.
Bundles

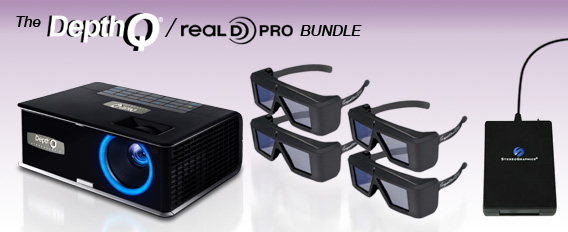

Lightspeed Design and RealD are pleased to now offer the DepthQ®/RealDPro Bundle:
The DepthQ®/RealDPro Bundle consists of one DepthQ® HDs3D-1 projector, four RealD/Stereographics CrystalEyes 3 professional LC shutter glasses, and one EXXR long range wide-angle IR emitter.
In addition, customers purchasing a DepthQ®/RealDPro Bundle from Lightspeed will be able to purchase additional CrystalEyes 3 eyewear for a discount!
Please contact us for this special bundle pricing.
SCREENS
Supernova CoreTM Front Projection Screen
|
DNP's award-winning Supernova optical screen with advanced active optical technology is ideal for brightly lit rooms – meaning that for the first time ever, you don’t have to dim the lights when using a front projection solution.
Supernova Screens feature an active high-contrast filter that allows only the projected image to be reflected while effectively absorbing incident light from other angles. This unique technology means the screen is virtually unaffected by diffused ambient light.
This high-quality screen in an economical frame construction comes with a black velvet frame and wall-mount brackets for easy set-up. Call for pricing, based on screen size. View Details View Product PDF |
CONVERSION LENSES
0.8X Mini ScreenStar Wide Angle Converter Lens
|
The 0.8X Mini ScreenStar Wide Angle Converter provides a 25% larger image from the same projection distance or allows you to maintain the same size image while moving your projector 0.8 times closer to the screen.
Navitar's Mini ScreenStar lenses are designed to be used with small profile projectors with panel sizes 0.8" or smaller. The compact design blends well with projector body styles and is so lightweight it fits into a projector or brief case for easy transport. A stabilizing leg comes standard with every ScreenStar lens. When using the ScreenStar on a table, with a typical small DLP or small format LCD projector, the stabilizing leg is all you'll need. It allows you to simply place the ScreenStar lens in front of the prime lens on your projector. $650 (Part number: SSC08). View Details |
Mini ScreenStar Lens Table Mount
|
Table Mount for 0.8X ScreenStar Lens. Table mount allows you to place the lens in front of the projector and easily adjust the height and tilt required. There are two holes in the base to hard mount the stand to a surface.
$199 (Part number: 1-17263). View Details |
Mini ScreenStar Lens Ceiling Mount Adapter
|
If you plan to use your ScreenStar with a ceiling mounted projector, this ceiling mount adapter produced by Chief Manufacturing allows you to easily attach the ScreenStar lens to the ceiling mount. Please note: Only compatible with Chief Ceiling Mounts, see below.
$199 (Part number: 1-18008). View Details |
REPLACEMENT LAMPS

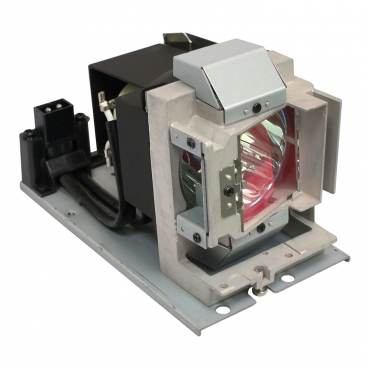

Replacement lamp for the DepthQ® HDs3D-1
High-Definition 3D Projector
|
InFocus Certified replacement lamp for the DepthQ HDs3D-1 (1280x720) High-Definition 3D Projector. Lamp life 4000 hours in Eco Mode, 3000 hours in Normal Mode. $299 (Part number: SP-LAMP-058). View Details |
Replacement lamp for the DepthQ®-WXGA HD 3D Projector
|
InFocus Certified replacement lamp for the DepthQ-WXGA (1280x720) HD 3D Projector. Lamp life 2500 hours.
$199 (Part number: SP-LAMP-045). View Details |
Replacement lamp for the InFocus®DepthQ® 3120 3D Projector
|
InFocus Certified replacement lamp for the InFocus®DepthQ® 3120 (800x600) 3D Projector. Lamp life 4000 hours.
$299 (Part number: SP-LAMP-018). View Details |
MOUNTS & STANDS
Chief RPA227 Inverted Custom Projector Mount
|
This is the top-selling projector mount in the industry, with a low-profile look and exclusive All-Points™ Security System.
Lightspeed recommends this mount if you also plan to use the 0.8X Mini ScreenStar Wide Angle Converter Lens (Part number: SSC08) with Ceiling Mount Adapter (Part number: 1-18008). Please note: There is no single "universal" kit of Chief parts that we can recommend for every ceiling installation. Chief manufactures a stunning array of professional parts and accessories designed to specifically address the many ceiling mount scenarios that exist. This mount is merely a starting point. We will need to know more information before we can recommend the entire package of parts that will best accomplish your installation. Please contact us to discuss your unique requirements. $220 (Part number: RPA-227). View Details View Product PDF |
InFocus Universal Ceiling Mount
|
Mount your projector to the ceiling with this versatile ceiling mount.
$234 (Part number: SP-CEIL-UNIV). View Details |
False Ceiling Plate for use with InFocus Universal Ceiling Mount
|
Use this ceiling plate to simplify projector installation in drop-tile/acoustic-tile ceilings. Used in conjunction with the InFocus Universal Ceiling Mount (Part number: SP-CEIL-UNIV).
$129 (Part number: SP-LTMT-PLTB). View Details |
InFocus Universal Ceiling Mount Extension Arms
|
Extends the projector mount below the ceiling fixture. Used in conjunction with the InFocus Universal Ceiling Mount (Part number: SP-CEIL-UNIV).
$79 (6-9" Part number: SP-EXTARM-01) $119 (12-18" Part number: SP-EXTARM-02) $129 (18-24" Part number: SP-EXTARM-03) $149 (24-36" Part number: SP-EXTARM-04) |
Wall Mount Adapter
|
Wall mounting made easy. Used in conjunction with the InFocus Universal Ceiling Mount (Part number: SP-CEIL-UNIV).
$62 (Part number: SP-WALL-ARM). View Details |
PC Guardian Classic Projector Lock
|
The ideal locking companion for InFocus digital displays. Designed for security and ease of use, the SEC-LOCK-01 features a push button locking head that secures equipment without a key by simply pushing the lock into place.
$45 (Part number: SEC-LOCK-01). View Details |
CABLES & ADAPTERS
Single Link DVI to HDMI Cable (10ft/3m)
|
Connect your computer to the DepthQ® HDs3D-1 projector digitally for the highest quality image.
$29 (Part number: DVI-HDMI-CAB). |
IR Emitter Extender Cable, 3 Pin Mini-DIN (50ft/15.25m)
|
Extend the distance between your IR emitter and computer/graphics card by 50ft.
$40 (Part number: 012-0018-00). |
IR Emitter Daisy Chain Cable, 3 Pin Mini-DIN (10ft/3m)
|
Add additional IR emitters by "daisy chaining" the sync signal from your graphics card.
$40 (Part number: 012-0010-00). |
Power Cord (US) 6ft/1.8m
|
US power cord compatible with the DepthQ® HDs3D-1 Projector as well as the DepthQ®-WXGA and the InFocus®DepthQ® 3120 3D Projectors. RoHS Compliant. (6ft/1.8m)
$10 (Part number: 516-0052-50). View Details |
Stereo Audio Cable. Uses 3.5mm minijack connectors (6ft/1.8m)
|
Connects laptop/desktop computer audio to your projector.
$3 (Part number: 210-0118-00). View Details |
USB A/B Cable (36ft/11m)
|
Provides USB connection from projector to computer for firmware upgrades and mouse control from the remote.
$25 (Part number: SP-USB-11M). View Details |
VGA Computer Cable (6.6ft/2m)
|
Use this cable to connect the 15-Pin VGA output from your computer or other source device to your DepthQ® HDs3D-1 Projector's 15-Pin VGA input. (This cable is included with a new projector purchase.)
$19 (Part number: SP-VGA-2M). View Details |
VGA Extension Cable (36ft/11m)
|
11 meter (36ft) 15-pin VGA extension cable. Male to female connectors.
$49 (Part number: SP-VGAEXT-11M). View Details |
VGA to Component Video Adapter
|
Connects the VGA input on your InFocus projector to a 2D Component Video source.
$19 (Part number: SP-VESA-ADPT-R). View Details |
Stereo Bracket for NVIDIA Quadro FX 3800
|
The FX3800 does not have a traditional DIN-3 stereo connector. However, it can supply stereo sync through a special adapter cable (Stereo Mini-DIN) which plugs into a small 4 pin connector at the top of the graphics card (right next to the SP/DIF connector). Please Note: Lightspeed does not stock this part. B&H has stock on the adapter cable here: PNY Technologies Stereo Bracket for Quadro FX 3800. $14.95 (B&H Part Number: PNQFX3800). |
Stereoscopic Breakout Cable (VGA pass-thru with 3 pin DIN breakout)
|
To be used to connect most IR emitters to nVidia Quadro cards which support quad-buffered OpenGL stereo, but do not have an onboard 3 pin DIN connector (e.g. nVidia FX1500). Please note: This product does not work with current version Quadro graphics cards (like the FX1700, FX570, etc). In order to use this cable your graphics card must be supported by the nVidia driver version 84.21 (released March 2006), and you must have the "Use shutter glasses" option selected under "Stereo display mode" in this driver's configuration. Please verify that your graphics card supports this driver and that you have the "Use shutter glasses" option before purchase. $49 (Part number: 012-0020-00). |
REMOTES
Navigator III Remote
|
The Navigator III remote control is standard-equipment for our latest projectors, engineered to provide projection users with more control. Enhanced features include: Volume control, Blank Screen, Preset access, Image setup and a custom button.
$49 (Part number: HW-NAVIGATOR-3). View Details |
Commander Remote 2
|
This new version is a lightweight, full-featured remote offering key functions such as interactive mouse control, customizable macro buttons, PowerPoint keys, volume control, projector power ON/OFF and an on-board laser pointer. Additionally, the Commander remote offers index-trigger operated backlighting, so even in the darkest of rooms you can still control the show.
$89 (Part number: HW-COMMANDER-2). View Details |
Presenter RF Remote with USB Receiver
|
Enjoy precise control of your presentations, up to 100 feet away.
$99 (Part number: HW-PRESENTER-RF-R) . View Details |
CASES
Softcase for Meeting Room Projectors
|
Designed to fit projectors measuring up to 12” x 10” x 4”.
$55 (Part number: CA-CASE-02). View Details |
Universal Backpack
|
Dedicated placement for notebook, digital projector, cables, files, business cards and pens. Room for power supply, battery, MP3, headphones, memory cards and more. Ergonomically enhanced "fatigue free" back panel and shoulder straps for a cool and comfortable fit.
$79 (Part number: CA-BACKPACK-UNIV). View Details |
Universal Briefcase
|
Designed to fit projectors measuring up to 12” x 10” x 4” and laptops with screens measuring up to 17.5" diagonal.
$89 (Part number: CA-BRIEFCASE-UNIV). View Details |
Universal Rollercase
|
Designed to fit projectors measuring up to 12” x 10” x 4” and laptops with screens measuring up to 16.5" diagonal.
$139 (Part number: CA-ROLLERCASE-UNIV). View Details |
ATA Shipping Case for Meeting Room Projectors
|
Black molded high density polyethylene ATA® approved transit case with telescoping retractable handle, rugged built-in "roller-blade" style wheels, key lockable latch, combination lock, customized interior foam, and molded-in case guards.
$429 (Part number: CA-ATA-MTG). View Details |
EXTENDED WARRANTIES
1 year Extended Lamp Warranty
|
Project worry-free. Extend your lamp's warranty to 1 year with no limits on lamp usage! Please note: To be eligible for extended warranty coverage, the lamp’s original factory warranty must be valid.
$49 (Part number: ELW1). View Details |
1 Year Extended Product Warranty (Parts & Labor)
|
|
Project worry-free. Extend your projector's warranty by 1 year! Please note: Does not include lamps or accessories.To be eligible for extended warranty coverage, the projector's original factory warranty must be valid. $149 (Part number: EPW1). View Details |
2 Year Extended Product Warranty (Parts & Labor)
|
|
Project worry-free. Extend your projector's warranty by 2 years! Please note: Does not include lamps or accessories. To be eligible for extended warranty coverage, the projector's original factory warranty must be valid. $249 (Part number: EPW2). View Details |
